Metal version of digital night vision device, this product can be used both during the day and at night. This product has a magnification of 6-36 times, the objective lens diameter is 50mm/f1.0 and the field of view angle is 10°. 0.4" HD 1280*720P display; 1080P FHD HD video, 4032 x 3024 HD photo; the product's built-in WIFI can be connected to the mobile phone, and users can watch and operate on the mobile phone simultaneously; the maximum supported FAT32 format storage card is 128GB. Whether it is exploration, hunting, or safety protection in a dark environment, this digital night vision device is a must-have for you.
Application areas: border defense armed police patrol records, customs anti-smuggling inspection and maritime patrol, military unit reconnaissance, journalists remote observation and photography, private detective evidence collection, fire fighting, banking, electricity, railway water conservancy, anti-terrorism and riot control, high-rise operations, environmental protection, production safety supervision, hunting and animal observation and photography monitoring, anti-poaching, field observation and rescue, emergency rescue, traffic command, forestry management, geological exploration, oil production units, airport management and other application areas.
Model | CQ-NVM-G2-50 |

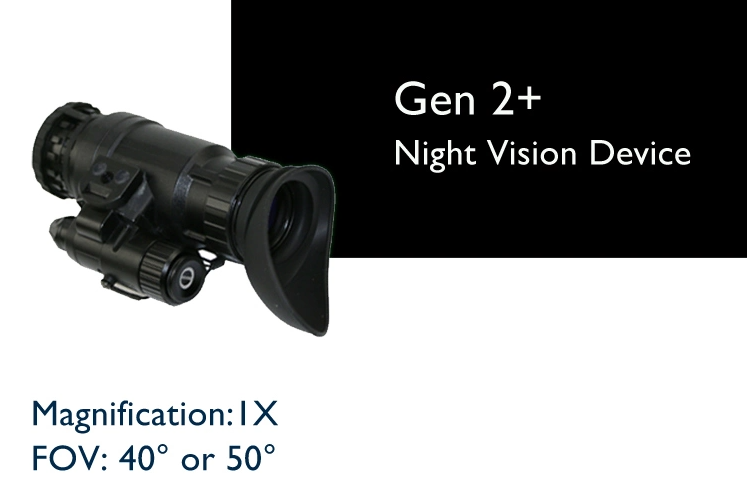

Image intensifier | Gen2+ (High performance super second generation) |
Optical magnification | 1X |
Resolution ratio | 57-64 |
The cathode surface type | S25 |
Signal-to-noise ratio (decibel) | 22-25 |
Optical sensitivity (microAnn / lumen) | 750-900 |
Image Intensifier Warranty Resource | 10,000 |
Field of view (degree) | 50±2° |
Observation distance (m) | 180-220 |
Diopter adjustment range | +5/-5 |
Lens shift(objective lens) | F1.2, 25mm |
Optical coating | Multi-layer composite broadband super-vacuum ion-permeable membrane |
Objective adjustment range (m) | 0.25--∞ |
Automatic anti-strong light | High-sensitive, ultra-fast, and broadband detection |
Flip detection | Full-solid-state contactless automatic pose recognition |
Overall dimensions (mm) (excluding eye mask) | 110x75x45mm |
Product material | Full aviation aluminum alloy |
Weight (g) | 289g |
Power supply voltage (V) | 2.6-4.2V |
Battery type (V) | One lithium battery |
Continuous working hours (hrs) | 20hrs (IR open) , 40hrs (IR closed) |
Operating temperature range (ºC) | -40ºC~+50ºC |
relative humidity | 5%-98% |
Dust and waterproof grade | IP66 |
