[Recommended] Monocular single-tube multi-function RE60 super second generation low light night vision device

2024-07-29 Visits:

Description of the monocular single-tube multifunctional RE60 super second-generation low-light night vision device

This product is a portable and multifunctional low-light night vision device. It has the advantages of small size, light weight, and high resolution. The magnification can be changed by replacing the objective lens. There are 1x and 4x objective lenses for you to choose from. It can also be equipped with digital cameras, camcorders and CCD cameras with other focal lengths according to user requirements, or it can be used alone. This night vision device uses a third-generation or super second-generation image intensifier with anti-glare and anti-glare functions, and is equipped with a built-in red illuminator. It can be used for military observation, border and coastal defense reconnaissance, public security inspection, surveillance, customs drug control, anti-smuggling, boating, etc. and other dark and bright environments.

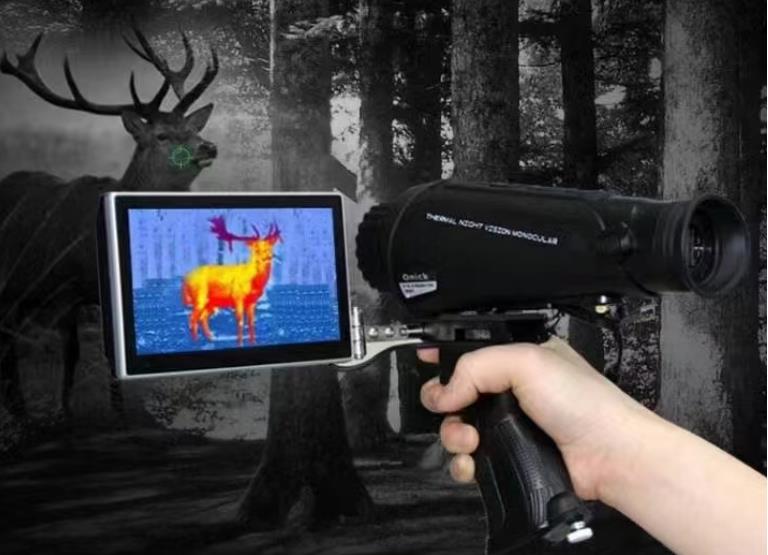

RE60 outdoor search thermal imaging night vision device


Product features:

1. Gravity sensing anti-exposure function, can be connected to an external handle, tripod, mobile phone, SLR camera, camera, can be connected to the rail to install light weapons

2. Replaceable 3x, 4x, 5x, 7x objective lenses for long-distance observation

3. Built-in infrared auxiliary illuminator

4. One-year warranty period, lifetime maintenance


model

RE60

Detector performance



Detector type

Uncooled focal plane

pixel

384×288

Image function

























Field Angle

14°*10.5°

Focus Distance

25mm

Noise equivalent temperature difference

<50mk@30℃

Frame frequency

50HZ

Focusing

Manual focus

Electron doubling

2X,3X,4X

Wavelength range

8-14μm

Image transmission

WiFi real-time image transmission
    Support mobile APP image browsing, photography, video and other functions

Cross cursor

There are

Hot spot tracking

There are

Laser indication

There are

picture-in-picture

There are

ranging

There are

Image display





display

Color 1280*960

Image polarity

Black heat, white heat, red heat, false color (iron heat)

Visibility control

Adjust by knob

Power supply system







Battery type

Lithium battery, rechargeable

Battery operating time

5 hours of continuous work

Charging type

Support USB charging, can be connected to external charging bank power supply

External power supply

DC5V/2A(Micro USB)

Environmental parameter







Operating temperature

-20℃- +50℃

Storage temperature

-40℃- +60℃

Class of protection

IP66

fall

1 M

Physical characteristics



weight

0.45kg

dimension

<190x70x70mm

port





Power interface

There are

Video output

PAL

USB

External charging

Observation distance

Detection range

700m people(1.8x0.5m);1100m car(2.3x2.3m)

Recognition distance

350m people(1.8x0.5m);560m car(2.3x2.3m)

RE60 outdoor search thermal imaging night vision device

RE60 outdoor search thermal imaging night vision device
