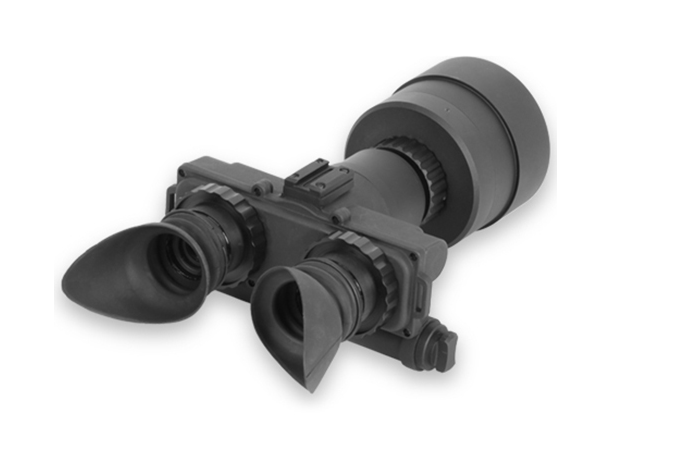

Onick Owl NVG-H is a single-object binocular helmet-mounted low-light night vision device for night patrol. It is small in size, light in weight, with automatic brightness control, and is equipped with a qualified helmet. It uses an advanced image intensifier and advanced optical system with American technology, high resolution, and has anti-glare and anti-dazzle functions. The single-tube night vision goggles are built around a high-grade 18mm HPT image intensifier tube, and adopt a pseudo-binocular design for easy observation, with a built-in infrared auxiliary lighting source. Multi-purpose: handheld, head-mounted
Product features:
1. Super second-generation image intensifier, clearer picture and more layered;
2. Strong light protection function, high light cut-off protection circuit, no fear of strong light exposure;
3. Available in completely dark environment, minimum focusing distance is 0.25 meters, map can be viewed in completely dark environment;
4. High-power lens can be replaced to enhance observation effect, three operation modes are optional;
5. Adjustable interocular distance (55-75mm), suitable for different face shapes, light weight, compact and sturdy goggle system;
6. Normal operation under temperature conditions of -40℃ to +50℃, adapt to extremely cold or extremely hot environment;
7. All-optical glass multi-layer coating, low battery reminder, wide-angle infrared lighting, 7 energy-saving power supply design, extended working time.
Product parameters:
Magnification: 5x
Image tube level: Super second generation
Observation distance: 1200m
Total darkness: Yes
Resolution: 57-64lp/mm
Signal-to-noise ratio: 19-23
US military standard FOM value: ≥1250
MTB: 10,000 hours
Lens system: F1.2, 130 mm
Lens coating: Yes
Field of view: 8°
Focusing range: 5m to infinity
Diopter: -6 to +5
High light protection: Yes
Automatic shutdown system: Yes
Auxiliary light source: Yes
Infrared indicator: Yes
Low voltage indicator: Yes
Power supply: 2 AA batteries
Battery life: 60 hours
Environmental adaptation level: Waterproof
Operating temperature: -40 to +50 °C
Storage temperature: -50 to +70 °C
Dimensions: 200x150x75mm
Weight: 880g
Image intensifier parameters
Cathode type: 18mm S-20
Cathode sensitivity, typical: ≥550μA/lm
Focusing range: 3m to infinity
Gain, typical: 16000-25000fl/fcd
Signal-to-noise ratio, typical: 20:1 or better
FOM, typical: ≥1150
Image tube service life: 10,000 hours
Relative humidity at 25℃: 98%
Use time: 10 years
Applicable customer groups and uses (illegal use prohibited):
Unit reconnaissance, command and operation, training purposes, border defense and armed police patrol records, customs anti-smuggling inspection, public security and judicial secret reconnaissance, investigation, law enforcement evidence collection, nature reserves, forestry, wildlife protection, scientific research institutes, forest farms, wetlands, forest parks, monitoring of wild animals, anti-poaching, mountain caves, travel adventure enthusiasts, outdoor travel climbing, long-distance camping photography monitoring, journalists, remote observation photography, investigation companies, private detectives secretly photographing and collecting evidence, traffic command and management departments taking photos on duty at a distance.
Long-distance observation and photography in dangerous industries such as firefighting, banking, electricity, water conservancy, steel mills, riot control, and high-rise operations; long-distance observation and photography in forestry management, geological exploration, oil production units, airport management, large-scale assembly management units, railways and ports; long-distance observation and photography in environmental protection, production safety supervision and highway management departments; long-distance photography and monitoring by hunting or animal observation enthusiasts.
