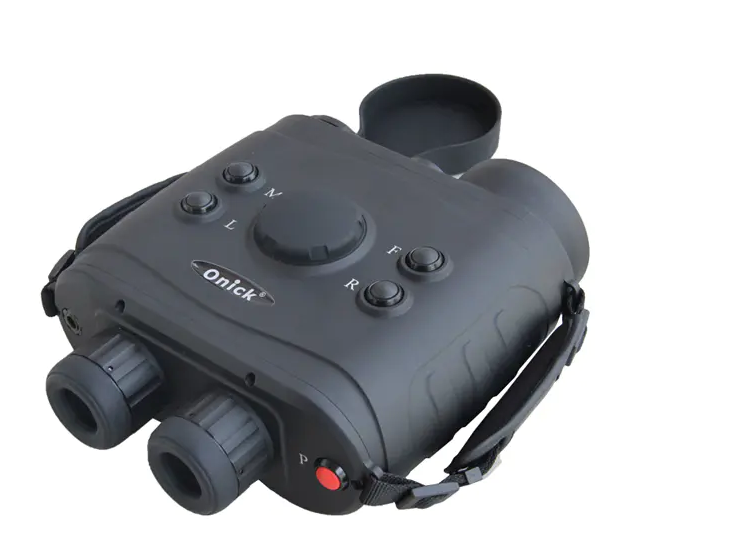

Onick LRB 10000CI is a super long-distance handheld laser binocular rangefinder in our product line that is beyond the human eye level. Under typical environmental conditions, when visibility is >23.5km, the ranging capability is 100 meters to 10 kilometers. It is a 1.57μm laser, can work all-weather, and has strong smoke penetration ability, so it is suitable for photoelectric confrontation, laser ranging, tracking, early warning, etc. In addition, according to the needs of some customers, it has optional functions such as azimuth and pitch angle measurement, north pointing, and GPS/Beidou positioning. It shows its excellent performance in various fields. LRB 10000CI is mainly used for observation and ranging of long-distance targets, and plays an important role in various professional activities such as land, navigation, highway and power construction, high-altitude patrol, positioning, meteorology and others.

Product features:

Used for long-distance observation and distance measurement of targets

Binocular visible light observation, data output

Human eye laser ranging, maximum distance measurement of about 10 kilometers

Azimuth and pitch angle measurement, north pointing, and GPS/Beidou positioning can be customized and optional

Product parameters:

Product model: LRB 10000CI

Multiplier: 8x

Range: 100 meters-10 kilometers

Working wavelength: 1.57μm

Peak power: ≥1MW

Detection device: APD

Beam divergence: 0.8mrad

Distance accuracy: ±5m

Eyepiece adjustment range: ±3 diopters

Protection level: IP67

Repetition frequency: 10ppm

Working temperature: -30℃～60℃

Power supply: 12V built-in lithium battery or external power supply

Data interface: RS422

Electronic compass function: optional

Dimensions: 240x210x90mm

Weight: 2.7kg
