Radar speedometers are common on the market, but ordinary radars have some inherent defects, so this laser speedometer was launched. Compared with radar detection, laser detection is more concealed and has a longer detection distance. At present, electronic dogs on the market generally cannot detect prompts. The use of ring mirrors is particularly advantageous in environments with dense traffic or long detection distances.
Brief description of laser speedometer: It can detect the speed and distance of a specified vehicle among a large number of vehicles 100 meters away. At the same time, it can take photos of speeding vehicles for evidence collection, and can record a video to fully show the entire process of the violation. It adopts a handheld design with a handle battery, which is light and compact, and easy to replace the battery. Onick Outdoor Optics integrates advanced laser speed measurement technology and video imaging technology to launch an ultra-portable laser speed measurement and recording system-Onick LSP320 handheld camera laser speedometer. At the same time, it is also

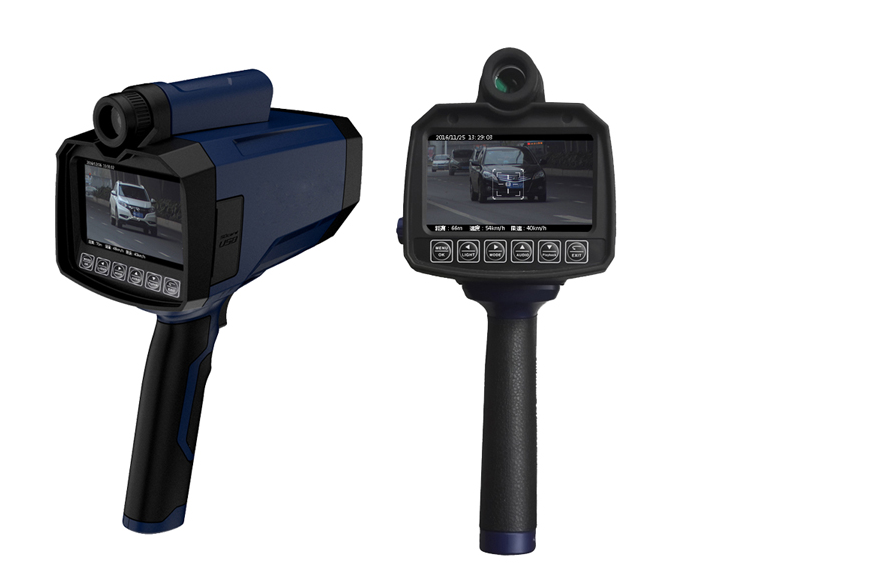

An integrated handheld laser speed measurement evidence instrument that can accurately measure the real-time speed of the car and the corresponding distance at the same time, and can capture static pictures of speeding vehicles and record videos. It can fully record the dynamic images of speeding vehicles, and it is light and easy to carry.
1. Product features:
4.3-inch color touch screen display, clear and convenient reading;
Class 1 eye-safe laser;
Speed range 320km/h, speed accuracy 1km/h, distance accuracy 0.15m;
With GPS function, voice prompt, humanized design;
Support 64GB SD card, record dynamic images for law enforcement and evidence collection;
RS232 serial communication port; USB2.0 image data transmission; WIFI: 2.4G&5G;
Novel design, compact style, light to use, high sensitivity, long-term work;
2. Product parameters:
Performance:
Best focus distance: 70 meters (230 feet)
Best operating range: 15-150 meters
Speed accuracy: ±1km/h
Speed range: 0km/h~320km/h
Distance accuracy: ±15cm
Display resolution: Speed mode: 1km/h; Distance mode: 0.1m;
Minimum measurement distance: ≤10m in speed mode, 60m in weather mode (automatic software recognition)
Maximum measurement distance: 600-700m in speed mode; 1200m in distance mode
Speed measurement time: 0.33 seconds
Maximum laser sampling: speed measurement with more than three sampling times per second
Speed measurement unit: kilometers per hour/miles per hour/meters per second
Distance measurement unit: meters/feet/yards
Laser wavelength: 905 nanometers
Laser beam divergence: 2.5 milliradians
Eye safety: FDA Class1 (CFR21)
Mechanical structure:
Body weight: 1.75kg
Dimensions: 197X124X316mm
Environment: IP65 waterproof/dustproof
Operating temperature: -10~+60℃ (14~140℉)
Charging temperature: 0~+45℃ (32~113℉)
Storage temperature: -20~+60℃ (-4~140℉)
Hardware:
Processor: Huawei Hisilicon ji3519AV100
Snapshot data storage: pluggable SD card, supports 64GB, optional 3G or 4G, sim card
SD file system format: MS-DOS (FAT16, FAT32)
Linux (EXT2, EXT3)
Display: 4.3 inches (10.9 cm), 800x480 pixels, color, touch screen
Camera: Sony 5 million high-definition industrial CCD camera
Camera lens: 75 mm, fixed focus
GPS: dedicated Beidou & GPS dual-mode positioning module
Real-time clock: support
Receiving channels: 20
Maximum update rate: 1Hz
Maximum altitude: 18000 meters (5900 0 feet)
Maximum speed: 515 meters/second (1689ft/sec)
Sensitivity: acquisition -142dBm, tracking -159dBm
Acquisition time: hot start 1 second
Cold start: less than 60 seconds
Reacquisition: <1.5 seconds
Accuracy: horizontal position
Average: 5 meters (7.2 feet)
Maximum: 10 meters (32.8 feet), spontaneous; 5 meters (16.4 feet), SBAS correction
Vertical position: average 0 meters (0 feet); maximum 15 meters (49.2 feet); horizontal speed 0.1 meters/second (0.3 feet/second); time accuracy: synchronized with GPS; 1 microsecond
Real-time clock: CR3032 battery backup 20PPM, 3 years of use without battery pack
Input/Output (I/O): RS232 serial communication port; USB2.0 image data transmission; resistive touch screen input; button input (including trigger); WIFI: 2.4G&5G
Power:
Battery pack: 7.4V DC, lithium polymer rechargeable battery pack, short circuit, overcharge protection, providing 5-7 hours of operation
Battery charger: 110vac~240vac 50/60Hz input
Power consumption: 5 watts
Software:
Operating system: Linux operating system, customized device driver
Anti-interference: automatic anti-interference
Video size: standard format, 640X480 pixels
Still picture size: 2560x1920 pixels
Maximum record size: unlimited, related to memory
Data encryption: AES-128
Other Others
Measurement mode: continuous, locked, automatic, video tracking mode, distance measurement mode, video mode
Voice prompt: speed and sound synchronization
Language: English, Chinese
Tripod: support (ordinary camera tripod interface)
List: suitcase, host, battery handle * 2, charging base, charging head, serial port output cable, tripod converter, manual, lens cleaning cloth, warranty card,
